Switch button
GN 729-34-B6 Anodised aluminium blackAL - Aluminium
Item-no.: 1212286Supplier number: 729-34-B6EAN: 4045525364097
Quantity:
1 PiecePackable
Item available in 4 variants:
Price and stock visible after login
Description

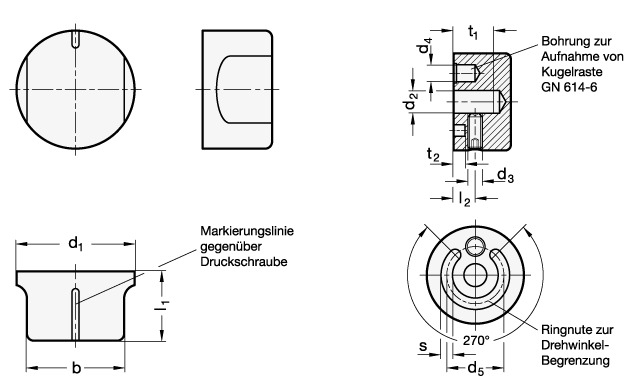

Control knobs GN 729 are usually selected for applications which require a limited movement within 180°. With the aid of limiting pins which protrude into the circular groove the angle of rotation can be restricted. The bore d4 is for a spring plunger GN 614 to act as a simple detent. The indexing line is indelible and visible from two sides.
Attributes
Borehole d2
B 6
L1
20
L2
7.5
Material
AL - Aluminium
Outer diameter d1
34
RoHS
Ja
Weight
0.043 kg
b
28
d3
M 5
d4
6
d5
20
s
4
t1min.
14
t2
4
