Ganter

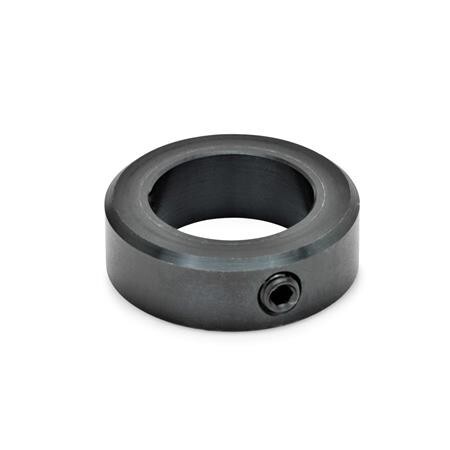

Stelkraag met stelschroef

GN 705-24-E Verbrand staal, pin DIN 914
ST - Staal
Art.-Nr.: 1211338Leveranciersnummer: 705-24-EEAN: 4045525353855

Aantal: ​​ 1 stukPakketgeschikt
Artikel in 125 varianten beschikbaar:
Op korte termijn verkrijgbaar

Beschrijving
Shaft collars GN 705 essentially comply with the versions of DIN 705. GN 705 also contains a number of practical intermediate sizes in addition to the DIN-versions as well as Type E (grub screw with internal hexagon). The clamping is done radially on the shaft or axle surface. Together with a dimpled hole or a groove at the collet diameter, the set collars can be positioned exactly and, at the same time, damage to the clamping point can be avoided.
Specificaties
Binnendiameter d1
24
Gewicht
0.098 kg
Materiaal
ST - Staal
RoHS
Ja
Vorm
E - Stelschroef met binnenzeskant DIN 914
b
16
d2
40
d3
M8x12
