Verbindingsset voor verstelbare geleiders

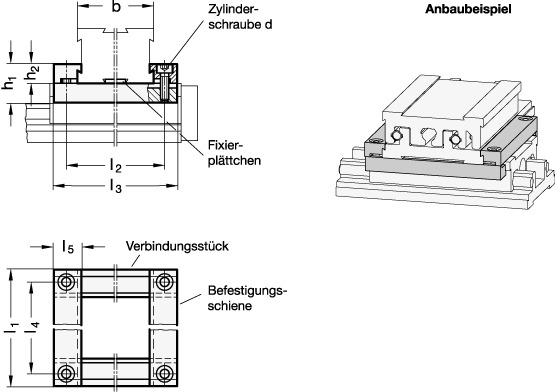

With connecting sets GN 900.2 two adjustable slide units GN 900 can be combined to produce an X-Y axis configuration. This combination is achieved with a clamping system which eliminates the use of any kind of fixing holes in the slide. The stationary base of the second adjustable slide unit is clamped on to the slide of the first unit to give the X-Y configuration. The slides on both units together give the X-Y movement. The small fixing plate serves for the 90° alignment and fine adjustment of the X-Y axis configuration. All parts required to make up a set are included.
