Verticale klem met schuine voet

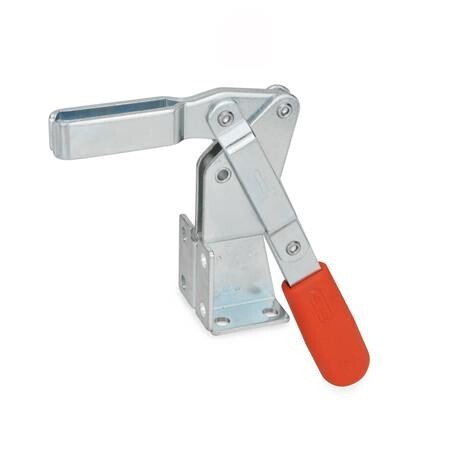

Toggle clamps GN 812 work according to the toggle principle: lever and clamping bar move in the same direction. They can be mounted in two planes via the dual flanged mounting base and require less space for the clamping action because the clamping arm and the operating lever move in opposite directions Toggle clamps in the U-bar version with two flanged washers (type AV) can accommodate an application specific clamping screw. A clamping screw with neoprene rubber tip is also included for type CV. Toggle clamps in the type EV version can either be utilized by welding the clasp which can then accommodate an application specific hold-down fastener component.
