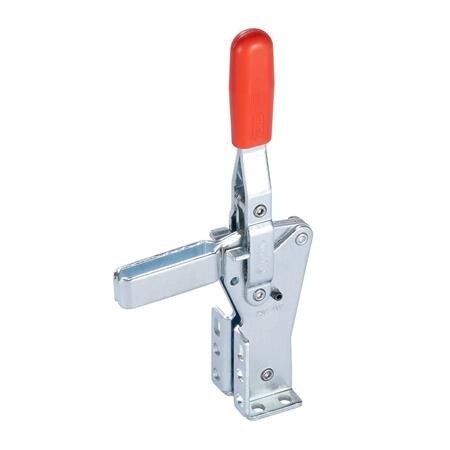

Verticale klem met schuine voet

Toggle clamps GN 812.1 work according to the toggle principle, lever and clamping bar move in the same direction. In the clamped position the operating lever is in its vertical position. They can be mounted in two perpendicular planes via the dual flanged mounting base and require less space for the clamping action. Toggle clamps with forked clamping arm, with two flanged washers (type AVF) can accommodate an application specific clamping screw. A clamping screw with neoprene rubber tip is also included for type CVF. Toggle clamps in type EVF can be adapted to special requirements by welding with the supplied clasp.
