Ganter

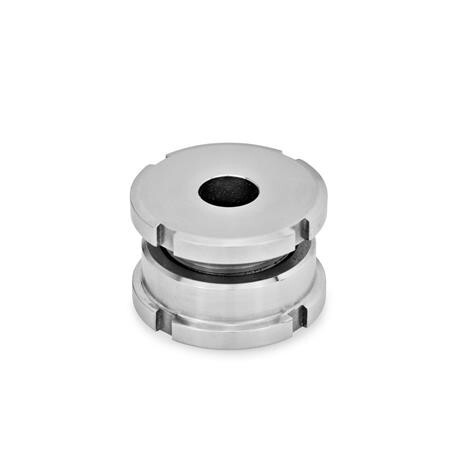

Levelling element

GN 350.1-25-6,6-A-NI Stainless steel, low profile
NI - Stainless steel
Item-no.: 1200633Supplier number: 350.1-25-6,6-A-NIEAN: 4045525496859
Quantity: ​​ 1 PiecePackable​
Item available in 32 variants:
Short-term Sourcing
Description
Stainless steel leveling sets GN 350.1 are used for leveling, adjusting and linking operations if small dimensions are given. They comprise a threaded upper sleeve and an internal threaded lower sleeve. The fine thread allows a stepless and precise setting and locking using the C-Spanner DIN 1810. A locking ring serves as a height limiter for the max. height.
Attributes
Borehole diameter d2
6.6
F2
20.2
For screw
M 6
Form
A - without lock nut
Form AK
20
Hook spanner
1810-A25-28
Material
NI - Stainless steel
Outer diameter d1
25
RoHS
Ja
Static load capacity F in kNF1
27.1
Statische BelastbarkeitF in kNF1
27.1
Weight
0.043 kg
d3
M 15 x 1
fürSchraube
M 6
h1 Form A
15
h1Form A
15
h2 Form A
19
h2Form A
19
h3 Adjustment range
4
