Ganter

Nivelleringselement

GN 350.1-25-6,6-A-NI Roestvrij staal, laag profiel
NI - Roestvrij staal
Art.-Nr.: 1200633Leveranciersnummer: 350.1-25-6,6-A-NIEAN: 4045525496859

Aantal: ​​ 1 stukPakketgeschikt
Artikel in 32 varianten beschikbaar:
Op korte termijn verkrijgbaar

Beschrijving

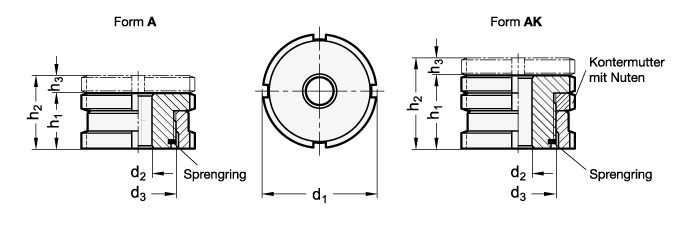

Stainless steel leveling sets GN 350.1 are used for leveling, adjusting and linking operations if small dimensions are given. They comprise a threaded upper sleeve and an internal threaded lower sleeve. The fine thread allows a stepless and precise setting and locking using the C-Spanner DIN 1810. A locking ring serves as a height limiter for the max. height.
Specificaties
Boringdiameter d2
6.6
Buitendiameter d1
25
F2
20.2
Gewicht
0.043 kg
Haaksleutel
1810-A25-28
Materiaal
NI - Roestvrij staal
RoHS
Ja
Statisch draagvermogen F in kNF1
27.1
Statische BelastbarkeitF in kNF1
27.1
Voor schroef
M 6
Vorm
A - zonder borgmoer
Vorm AK
20
d3
M 15 x 1
fürSchraube
M 6
h1 Form A
15
h1Form A
15
h2 Form A
19
h2Form A
19
h3 Verstelbereik
4
