Sheet metal hinge
GN 1362-NI-60-30-A-BL stainless steelNI - Stainless steel
Item-no.: 1343580Supplier number: 1362-NI-60-30-A-BLEAN: 4045525435667
Quantity:
1 PiecePackable
Item available in 7 variants:
Price and stock visible after login
Description
Stainless steel sheet metal hinges GN 1362 are distinguished by their universally compatible dimensions. The materials used also permit applications in aggressive environments. Type A is fastened via welding or holes created by the customer. Thanks to the standard dimensions, special application-specific solutions can be realized even in relatively small quantities.

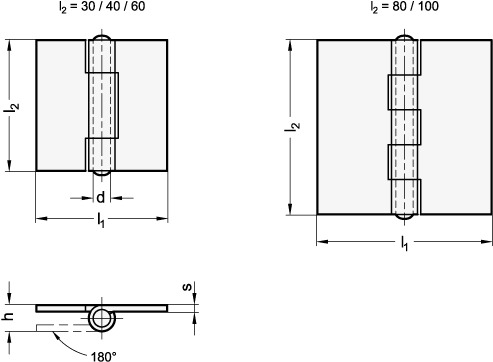

Attributes
Form
A - without holes
Length l2
30
Material
NI - Stainless steel
RoHS
Ja
Surface
BL - blank
Weight
0.060 kg
Width l1
60
d
6
h
12
s
3
