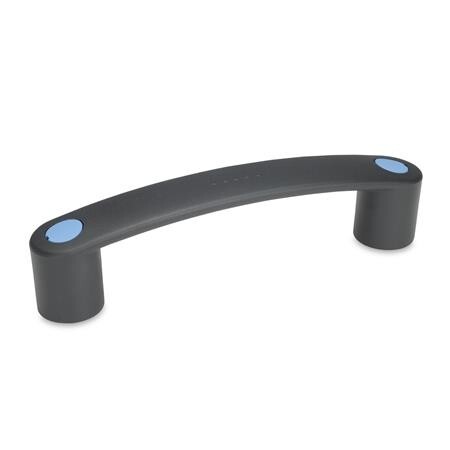

Bow handle, blue cover cap
GN 628-120-M8-A-DBLKT - Plastic
Item-no.: 1483504Supplier number: 628-120-M8-A-DBLcustoms tariff number: 39263000EAN: 4045525650046
Quantity:
1 PiecePackable
Item available in 12 variants:
Price and stock visible after login
Description
Cabinet U-handles GN 628 are designed with ergonomic shapes to match the Ergostyle product family. They can also be used as complementary handles for cabinet U-handles GN 628.4 and GN 628.5 with electrical and pneumatic switching function. The cover caps for type A are supplied ready assembled, for type B they are enclosed loose. The distance to the screw-on surface can be extended with distance bushings GN 628.2.
Attributes
Farbe (Abdeckkappe)
DBL - blue, RAL 5024, matt
Form
A - Mounting from the rear (threaded blind hole)
L2
147
Length l1
120
Material
KT - Plastic
RoHS
Ja
SW
13
Screw thread (Form A) d1
M 8
Weight
0.074 kg
d3
27
h1
40.5
h2
17.5
l3 min.
93
l3min.
93
s
9.5
t1
13
t2
10.5
