Ganter

Bow handle, cover cap green

GN 628-117-8,5-B-DGN
KT - Plastic
Item-no.: 1483468Supplier number: 628-117-8,5-B-DGNEAN: 4045525649415

Quantity: ​​ 1 PiecePackable
Item available in 133 variants:
Short-term Sourcing

Description
Cabinet U-handles GN 628 are designed with ergonomic shapes to match the Ergostyle product family. They can also be used as complementary handles for cabinet U-handles GN 628.4 and GN 628.5 with electrical and pneumatic switching function. The cover caps for type A are supplied ready assembled, for type B they are enclosed loose. The distance to the screw-on surface can be extended with distance bushings GN 628.2.

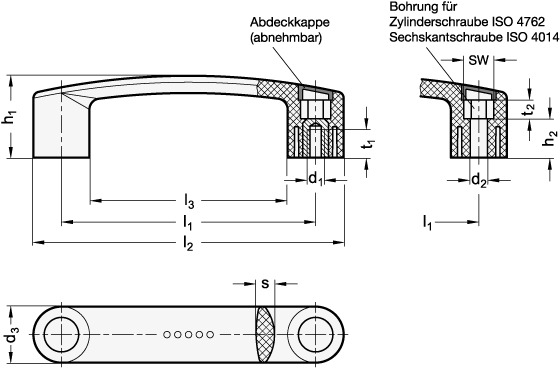

Attributes
Borehole (Form B) d2
8.5
Farbe (Abdeckkappe)
D GN - grün, RAL 6017, matt
Form
B - Mounting from the operating side
L2
143
Length l1
117
Material
KT - Plastic
RoHS
Ja
SW
13
Weight
0.059 kg
d3
26
h1
39
h2
18
l3 min.
91
s
8.5
t1
13
t2
8.5
