Ganter

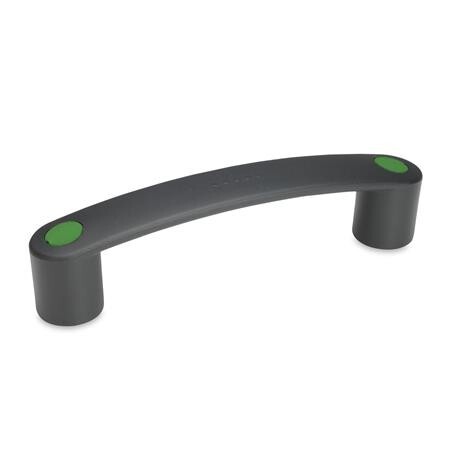

Bow handle, cover cap green

GN 628-179-M10-A-DGN
KT - Plastic
Item-no.: 1483481Supplier number: 628-179-M10-A-DGNEAN: 4045525649736

Quantity: ​​ 1 PiecePackable
Item available in 133 variants:
Short-term Sourcing

Description
Cabinet U-handles GN 628 are designed with ergonomic shapes to match the Ergostyle product family. They can also be used as complementary handles for cabinet U-handles GN 628.4 and GN 628.5 with electrical and pneumatic switching function. The cover caps for type A are supplied ready assembled, for type B they are enclosed loose. The distance to the screw-on surface can be extended with distance bushings GN 628.2.
Attributes
Farbe (Abdeckkappe)
D GN - grün, RAL 6017, matt
Form
A - Mounting from the rear (threaded blind hole)
L2
208
Length l1
179
Material
KT - Plastic
RoHS
Ja
Screw thread (Form A) d1
M 10
Weight
0.111 kg
d3
29
h1
51
l3 min.
150
s
9.5
t1
13
