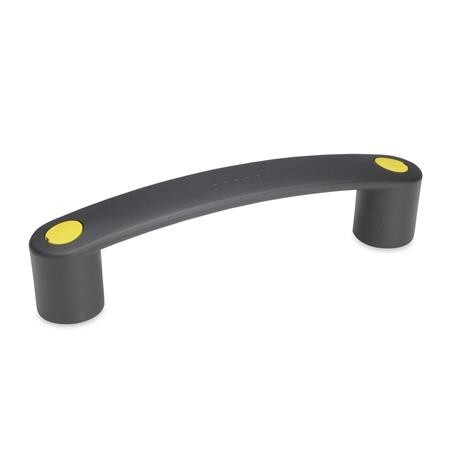

Bow handle, cover cap yellow
GN 628-132-M8-A-DGB ElesaKT - Plastic
Item-no.: 1208766Supplier number: 628-132-M8-A-DGBEAN: 4045525848016
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 12 variants:
Price and stock visible after login
Description
Cabinet U-handles GN 628 are designed with ergonomic shapes to match the Ergostyle product family. They can also be used as complementary handles for cabinet U-handles GN 628.4 and GN 628.5 with electrical and pneumatic switching function. The cover caps for type A are supplied ready assembled, for type B they are enclosed loose. The distance to the screw-on surface can be extended with distance bushings GN 628.2.
Attributes
Farbe (Abdeckkappe)
DGB - yellow, RAL 1021, matt
Form
A - Mounting from the rear (threaded blind hole)
L2
159
Length l1
132
Material
KT - Plastic
RoHS
Ja
SW
13
Screw thread (Form A) d1
M 8
Weight
0.080 kg
d3
27
h1
42
h2
17.5
l3 min.
105
l3min.
105
s
9.5
t1
13
t2
10.5
