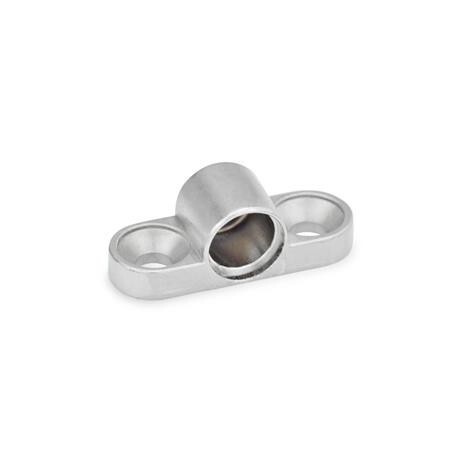

Pressure piece holder for GN 614
GN 614.1-6-B Version on both sidesZD - Zinc die casting
Item-no.: 1208278Supplier number: 614.1-6-BEAN: 4045525312494
PU (Packaging): 50 PieceQuantity:
1 PiecePackable
Item available in 6 variants:
Price and stock visible after login
Description
Holders for spring plungers GN 614.1 are standard parts which simplify the use of spring plungers GN 614. Types R, L and B consist only of the holder for spring plungers (without the spring plunger itself) and can then be used together with all other design variants of GN 614-6 and GN 614-8 in the types KD, MS and NI.
Attributes
Borehole diameter d1
6
Form
B - Fastening on both sides, without thrust piece
L1
7.5
L2
3
Material
ZD - Zinc die casting
RoHS
Ja
Weight
0.003 kg
b
8.5
d3 für Senkschraube DIN 7991
3.2
d32 For countersunk screw DIN 7991
M 3
d4
3
h1
4.25
h2
3.2
