Druckstück, federnd, zum Einpressen
GN 614.5-4-KU Kugel EdelstahlKU - Kunststoff / Edelstahl
Item-no.: 1224139Supplier number: 614.5-4-KUEAN: 4045525974609
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 10 variants:
Price and stock visible after login
Description
Spring plungers GN 614.5 are used as detents as well as for push-on and push-off applications and ejectors. The geometric shape of the plastic housing generates a self-clamping function which compensates drill hole tolerances of as much as 0,2 mm. It also allows the hand-tightened assembly and makes overhead installation easier.

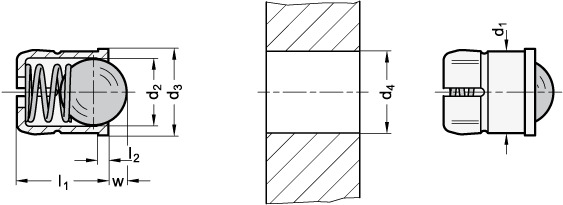

Attributes
End
6.5
L1
5
L2
1
Material
KU - Kunststoff / Edelstahl
Outer diameter d1
4
RoHS
Ja
d2
3
d3
4.6
d4
4
w
0.8
