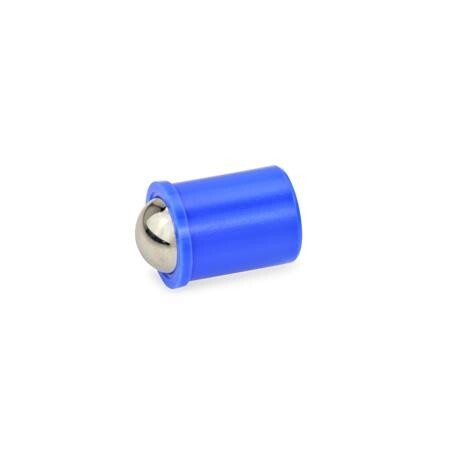

Spring-loaded press-fit thrust piece
GN 614-3-KU Sleeve POM, ball stainless steelItem-no.: 1208319Supplier number: 614-3-KUEAN: 4045525559608
PU (Packaging): 50 PieceQuantity:
1 PiecePackable
Item available in 17 variants:
Price and stock visible after login
Description
Spring plungers GN 614 are used as detents as well as for push-on and push-off applications and ejectors. A tolerance of H7 for the location hole of d1 is recommended.
Attributes
Diameter d1 (KU)
3
End
3.5
Form
KU - Plastic sleeve, stainless steel ball, normal spring pressure
KU / KDAnfang
1.7
KUKD
2
L2
0.6
RoHS
Ja
d3
3.6
w Federweg KUKD
0.55
