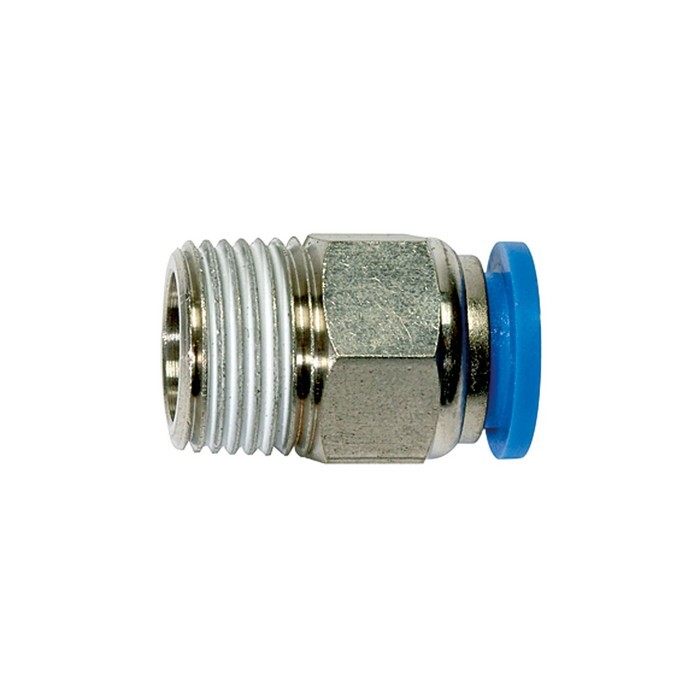

Einschraubsteckverbinder gerade
AG 3/8"R sechsk., SD8, L 22,1 mm, PTFE Blaue Serie, Messing vernickeltItem-no.: 1114108Supplier number: 123.038-8EAN: 4047322022828
PU (PU NW): 10 PieceQuantity:
1 PiecePackable
Item available in 22 variants:
Price and stock visible after login
Description
Straight push-in fitting »Blue Series«, R 3/8 o., for hose exterior Ø 8 mm, pmax short term 15 bar. Push-in fittings series manufactured in plastic and nickel-plated brass. All parts are suitable for use with hoses, tubes or pipes made of plastic.
Attributes
Application range
Air, vacuum
Arbeitsdruck max. kurzzeitig
15 bar
Arbeitsdruck min.
-0,95 bar
Dichtmaterial
NBR
For outer hose Ø
8 mm
Hexagon socket
6 mm
L1
24,6 mm
Loosening ring
Plastic
Material
Plastic or nickel-plated brass
Medium
Compressed air, neutral and non-hazardous gases and liquids
Product range
Blue series
Recommended hose
PU or PA (nylon)
Riegler article number
109145
SW
17 mm
Screw thread
R 3/8
Serie
Blaue Serie
Temperature range max.
80 °C
Temperature range min.
-20 °C
Working pressure max.
15 bar
