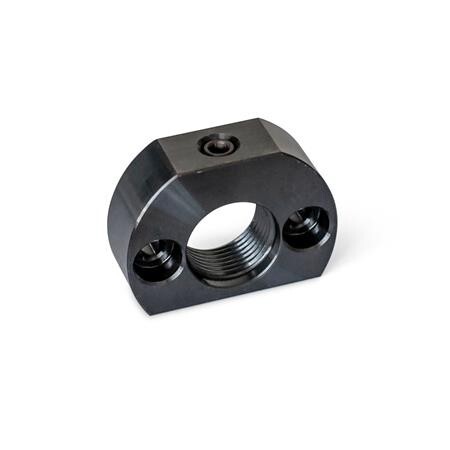

Retaining piece for GN 612+613
GN 612.1-M12X1,5-A Bore parallel to the Rast.ST - Steel
Item-no.: 1208042Supplier number: 612.1-M12X1,5-AEAN: 4045525311367
PU (Packaging): 5 PieceQuantity:
1 PiecePackable
Item available in 6 variants:
Price and stock visible after login
Description
Mounting blocks GN 612.1 simplify the mounting of indexing plungers (e.g. GN 817) as well as cam action indexing plungers GN 612, GN 712 and GN 712.1. To position the indexing pin of an indexing plunger or cam action indexing plunger, they can also hold positioning bushings GN 412.2.
Attributes
Form
A - Fastening hole parallel to the indexing plunger
L1
22
L2
26.5
Material
ST - Steel
Mounting thread d1
M 12 x 1,5
RoHS
Ja
Weight
0.044 kg
d2
32
d3
M 5
d4
4.5
d5
12.2
k
21
l3
9
s
12
t
3
