1216035 #1
Ganter

Handwheel with fixed handle

DIN 950-AL-180-K18-F Aluminium, bore and groove
AL - Aluminium
Item-no.: 1216035Supplier number: DIN 950-AL-180-K18-Fcustoms tariff number: 84879090EAN: 4045525400207
Quantity: ​​ 1 PiecePackable​
Your price: Price on request
Item available in 31 variants:
Short-term Sourcing
Description
Going beyond the DIN standard, handwheels DIN 950 are also available with Ø d1 = 180 and in types F and D with fixed or revolving handle.

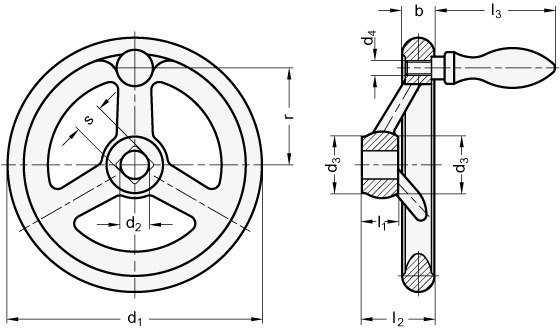

Attributes
Anzahl der Speichen
3
Ballengriff
25
Bore identification
K - with hub groove DIN 6885-1 P9
Bore labelling
K - with hub groove DIN 6885-1 P9
Borehole diameter d2
18
Form
F - with fixed handle
Form F
77
Handle
25
Handwheel diameter d1
180
L1
22
L2
43
Material
AL - Aluminium
R
72
RoHS
Ja
Weight
0.742 kg
b
20
d3
35
d3 ≈
35
d4
M 10
l2 ≈
43
l3 Form D
80
