1215981 #1
Ganter

Handwheel without handle

DIN 950-AL-100-V9-A Aluminium, square
AL - Aluminium
Item-no.: 1215981Supplier number: DIN 950-AL-100-V9-AEAN: 4045525398597
Quantity: ​​ 1 PiecePackable​
Item available in 31 variants:
Short-term Sourcing
Description
Going beyond the DIN standard, handwheels DIN 950 are also available with Ø d1 = 180 and in types F and D with fixed or revolving handle.

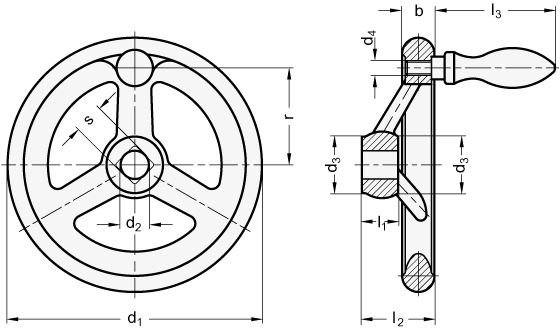

Attributes
Anzahl der Speichen
3
Ballengriff
16
Bore identification
V - with square DIN 79
Bore labelling
V - with square
Form
A - without handle
Form F
48.5
Handwheel diameter d1
100
L1
17
L2
33
Material
AL - Aluminium
R
36
RoHS
Ja
Square s
9
Weight
0.186 kg
b
15
d3
26
d3 ≈
26
d4
M 6
l2 ≈
33
l3 Form D
53
s Square
V 9
