1216160 #1
Ganter

Handwheel without handle

DIN 950-GG-125-B12-A Cast iron, bore
GG - Cast iron
Item-no.: 1216160Supplier number: DIN 950-GG-125-B12-AEAN: 4045525404540
Quantity: ​​ 1 PiecePackable​
Item available in 31 variants:
Short-term Sourcing
Description
Going beyond the DIN standard, handwheels DIN 950 are also available with Ø d1 = 180 and in types F and D with fixed or revolving handle.

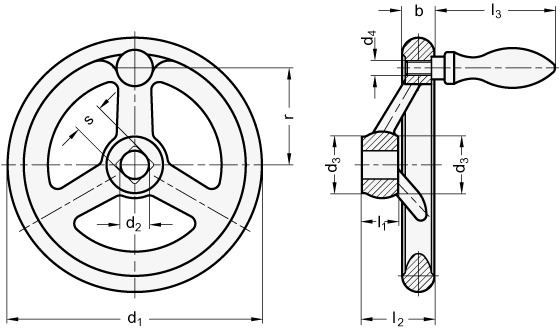

Attributes
Anzahl der Speichen
3
Ballengriff
20
Bore identification
B - without hub groove
Bore labelling
B - without hub groove
Borehole diameter d2
12
Form
A - without handle
Form F
62
Handwheel diameter d1
125
L1
18
L2
36
Material
GG - Cast iron
R
47
RoHS
Ja
Weight
0.699 kg
b
16
d3
28
d3 ≈
28
d4
M 8
l2 ≈
36
l3 Form D
65
s Square
V 11
