1216281 #1
Ganter

Handwheel without handle

DIN 950-GG-400-K30-A Cast iron, bore and groove
GG - Cast iron
Item-no.: 1216281Supplier number: DIN 950-GG-400-K30-AEAN: 4045525409590
Quantity: ​​ 1 PiecePackable​
Item available in 31 variants:
Short-term Sourcing
Description
Going beyond the DIN standard, handwheels DIN 950 are also available with Ø d1 = 180 and in types F and D with fixed or revolving handle.

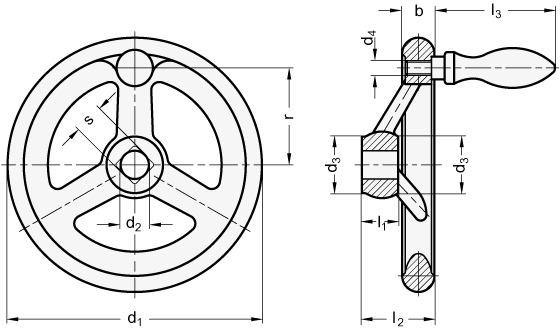

Attributes
Anzahl der Speichen
5
Ballengriff
32
Bore identification
K - with hub groove DIN 6885-1 P9
Bore labelling
K - with hub groove DIN 6885-1 P9
Borehole diameter d2
30
Form
A - without handle
Form F
96.5
Handwheel diameter d1
400
L1
38
L2
63
Material
GG - Cast iron
R
171
RoHS
Ja
Weight
10.000 kg
b
32
d3
65
d3 ≈
65
d4
M 12
l2 ≈
63
l3 Form D
102
s Square
V 24
