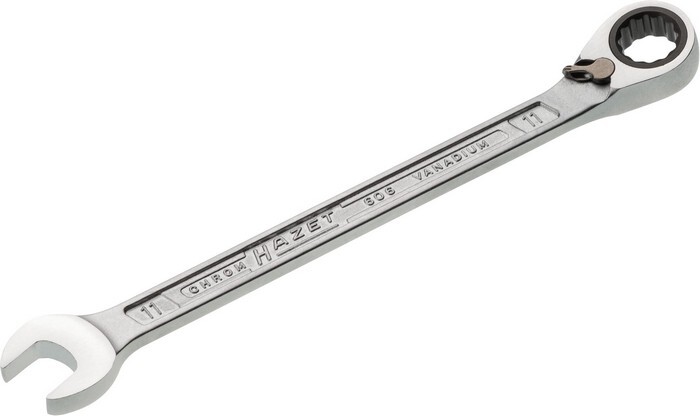

Ratchet ring spanner, angled

SW 11 mm L=168.6 mm Hazet 606-11
Item-no.: 1378001Supplier number: 606-11EAN: 4000896100972

PU (Packaging): 10 PieceQuantity: ​​ 1 PiecePackable
Short-term Sourcing

Description

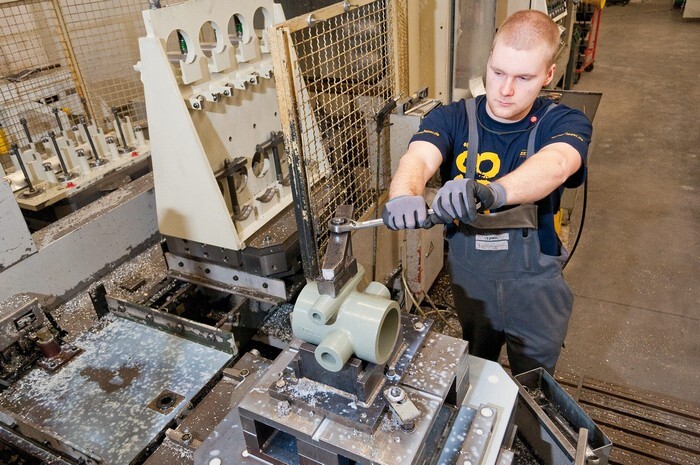

· Operation of screw connections in areas with restricted access, ratchet function enables continuous working · Long, slim design · Shank with sturdy HAZET double-T-profile · Box-end wrench with reversible ratchet · Fine-tooth, 72 teeth ∙ Operating angle 5° - Wrench size 8 and 9 mm: 60 teeth ∙ Operating angle 6° · Box-end side 13° offset · Head set at: 15° · Surface: chrome-plated · Output: Outside 12-point traction profile · Wrench size: 11 mm · Dimensions / length: 168.6 mm · Net weight: 0.06 kg.
Attributes
Abtrieb
Außen Doppelsechskant-Tractionsprofil
Anzahl Zähne
72 Zähne
Betätigungswinkel
5 °

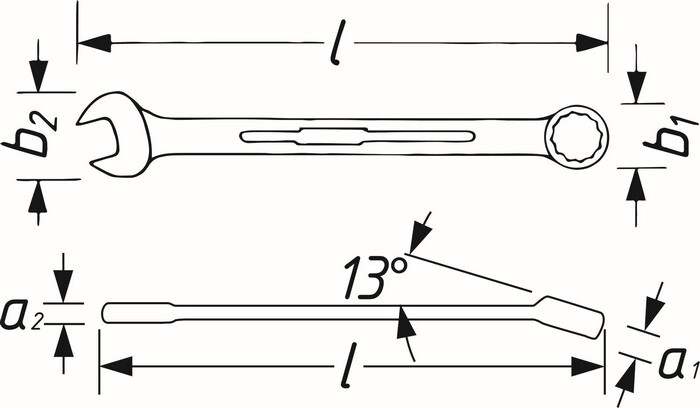

Kopfbreite (b1)
21.7 mm
Kopfbreite (b2)
23 mm
Kopfstärke (a1)
8 mm
Kopfstärke (a2)
6 mm
Length (battery)
168,6 mm
Material
Chrom-Vanadium
Maulstellung
15 °
Maße
168.6 mm
Netto-Gewicht (kg)
0.06 kg
Oberfläche
verchromt
Schlüsselweite (s1)
11 mm
Schlüsselweite s1xs2
11
Series
auya_606
Teeth
72
Version
switchable, ring side 13 °
Wrench width
11 mm
