Indexing plunger
GN 817.2-4-4-BST - Steel
Item-no.: 1213744Supplier number: 817.2-4-4-BEAN: 4045525634077
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 77 variants:
Price and stock visible after login
Description

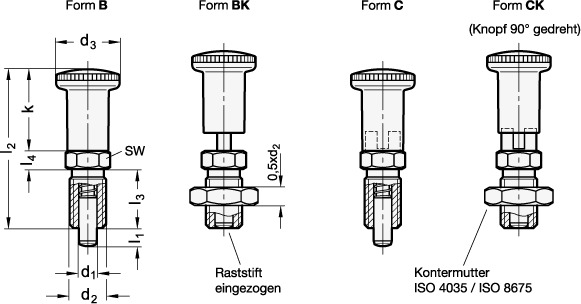

Indexing plungers GN 817.2 correspond to GN 817, they only differ by a longer knob. Type C / CK are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° degrees after being retracted. A notch keeps the plunger in this position.
Attributes
Bolt diameter d1
4
Detent travel l1
4
End
12
Federdruck Anfang
4.5 N
Form
B - without detent lock, without lock nut
L2
42
Material
ST - Steel
RoHS
Ja
SW
10
Weight
0.014 kg
d2
M 8 x 1
d3
16
k
21
l3
16
l4
5
