Ganter

Locking bar

GN 612-4-M10-A-NI stainless steel
NI - Stainless steel
Item-no.: 1208131Supplier number: 612-4-M10-A-NIEAN: 4045525592667
PU (Packaging): 5 PieceQuantity: ​​ 1 PiecePackable​
Item available in 158 variants:
Short-term Sourcing
Description
Stainless steel cam action indexing plungers GN 612 are used in cases where the locking pin must not protrude all the time. By rotating the lock through 180° the locking pin withdraws itself. A groove is provided in either position to prevent the lock from rotating.
Attributes

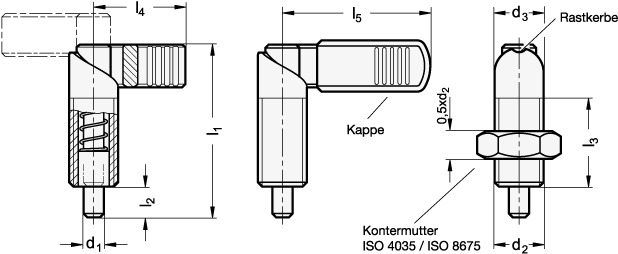

Bolt diameter d1
4
End
20
Federdruck Anfang
7 N
Form
A - without plastic cap, without lock nut
L1
37.5
L2
6
Material
NI - Stainless steel
RoHS
Ja
Screw thread d2
M 10
Weight
0.016 kg
d3
10
l3
19
l4
21
