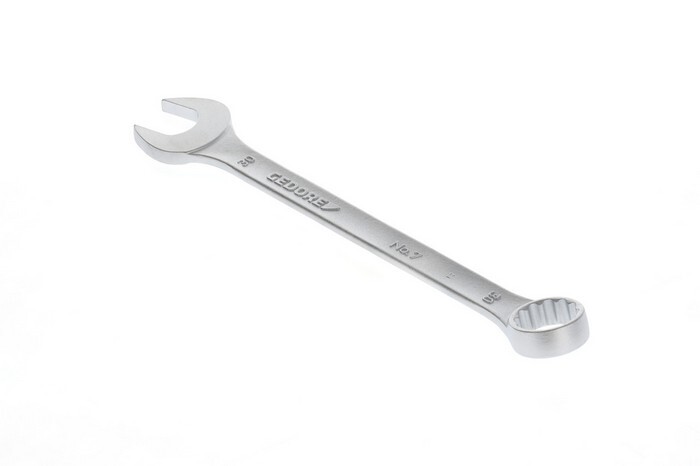

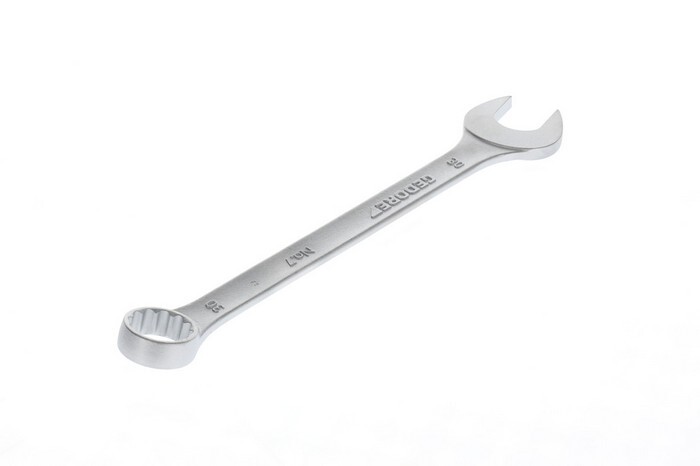

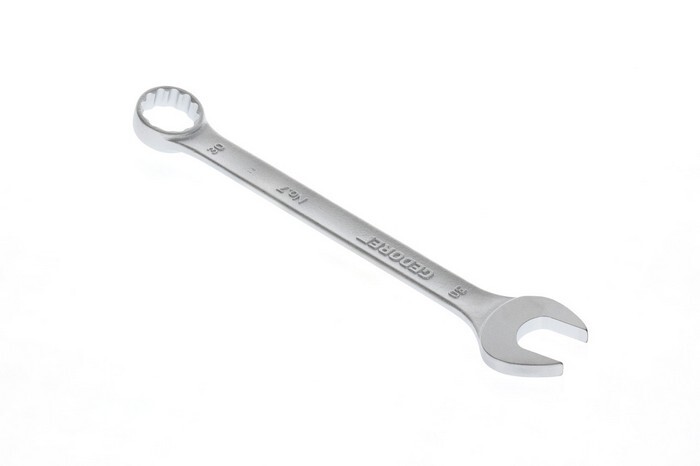

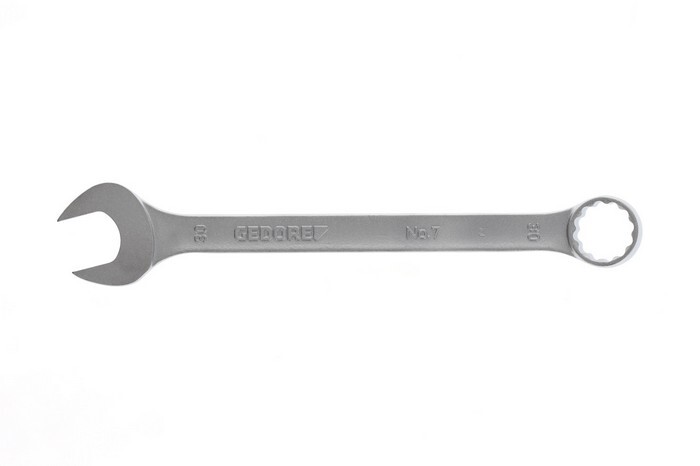

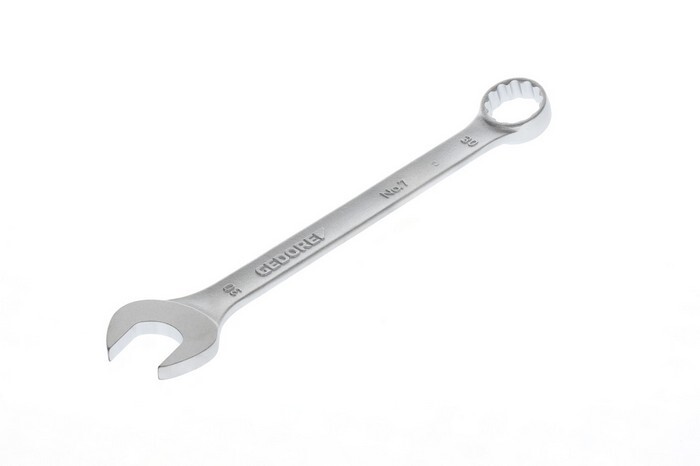

Combination spanner, angled
SW30 mm L340 mm Form A Gedore 7 30Item-no.: 1027795Supplier number: 7 30customs tariff number: 82041100EAN: 4010886609125
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 25 variants:
Price and stock visible after login
Description
Acc. to DIN 3113, Form A, ISO 3318, ISO 7738, Chrome-vanadium steel 31CrV3, chrome-plated, Carefully forged and professionally machined, Slim jaw and jaw walls make this spanner lighter overall, Jaw: ground precisely to exact nominal size for optimum contact areas, Ring: 15° offset from shaft, with UD profile for gentle transmission of force, Overloading indicated by deformation, Secure grip thanks to hollow shaft - very ergonomic and handy, Glare-free look due to matt chrome, Designed for universal use, Top-grade industrial quality for the hardest of continuous use, Size 3 to 5.5 with hexagonal ring, from 6mm with UD profile, * not standardised
Attributes

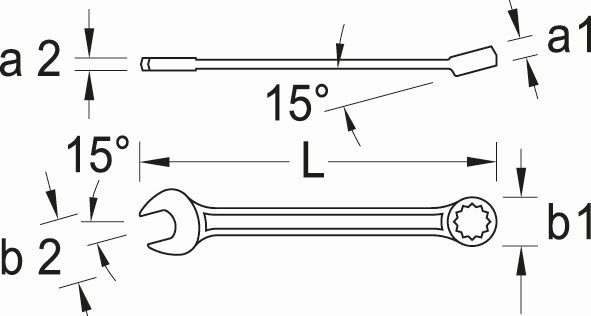

Head height 1
17 mm
Head height 2
9 mm
Head width 1
43 mm
Head width 2
63 mm
Jaw position 1
15 °
Length (battery)
340 mm
Material
CV steel
Net weight
0,428 kg
Norm
DIN 3113 Form A, ISO 3318, ISO 7738
Ring angle
15 °
Ring profile
UNIT-DRIVE
Surface
chrome-plated
Total height
27 mm
Total length
340 mm
Total width
62 mm
Wrench width
30 mm
Wrench width 1
30 mm
