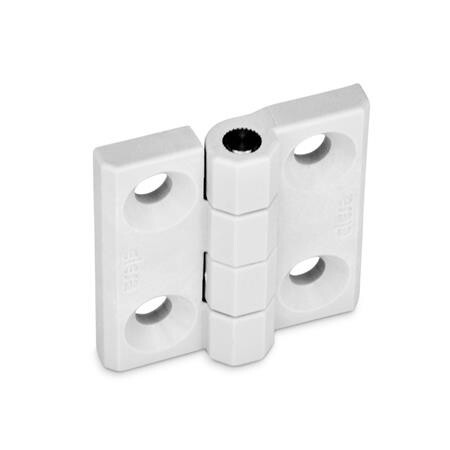

Hinge, 2x2 countersunk screw holes
GN 237.1-30-30-A-WS Elesa CleanlinePA-HP - Polyamide PA-HP
Item-no.: 1191332Supplier number: 237.1-30-30-A-WSEAN: 4045525846821
PU (Packaging): 20 PieceQuantity:
1 PiecePackable
Item available in 4 variants:
Price and stock visible after login
Description
Hinges, Plastic, White
Attributes
Colour
WS - white, RAL 9002, matt
Form
A - 2x2 holes for countersunk screws
Length l2
30
Material
PA-HP - Polyamide PA-HP
RoHS
Ja
Weight
0.006 kg
Width l1
30
d2
4.5
d3
2.5
h1
7
h2
3.5
h3
4
h4
8
l3
10.5
m1
18
m2
18
