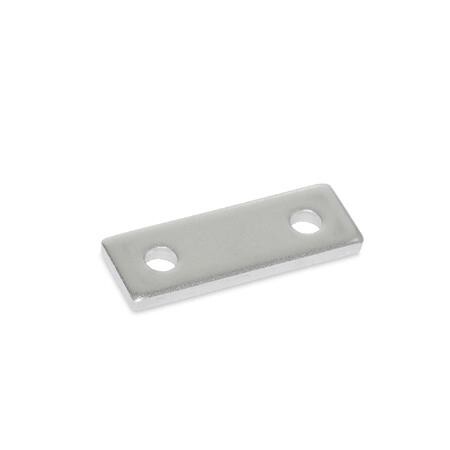

Spacer plate
GN 2370-NI-30-1-MT stainless steelNI - Stainless steel
Item-no.: 1344451Supplier number: 2370-NI-30-1-MTEAN: 4045525066922
Quantity:
1 PiecePackable
Item available in 16 variants:
Price and stock visible after login
Description
Tolerances of chamfers, different sheet metal thicknesses or the use of seals could mean that the mounting surfaces of the hinges on the frame and door do not have the desired separating distance. Spacer plates GN 2370 are designed as accessories for multiple families of hinges, and their dimensions allow them to be used as shims either individually or in combination to achieve the desired position or height compensation. The table includes a number of potential compensation heights which can be accomplished by shimming with one or two spacer plates.
Attributes
Height b1
10.8
Height compensation
1
L1
30
L2
30
Material
NI - Stainless steel
Plate thickness s
1
RoHS
Ja
Surface
MT - matt, vibratory ground
Weight
0.002 kg
Width s
1
b2
6
d
4
m1
18
m2
18
