Hinge
GN 235-NI-40-45-H-GS stainless steelNI - Stainless steel
Item-no.: 1344396Supplier number: 235-NI-40-45-H-GSEAN: 4045525442184
Quantity:
1 PiecePackable
Item available in 18 variants:
Price and stock visible after login
Description

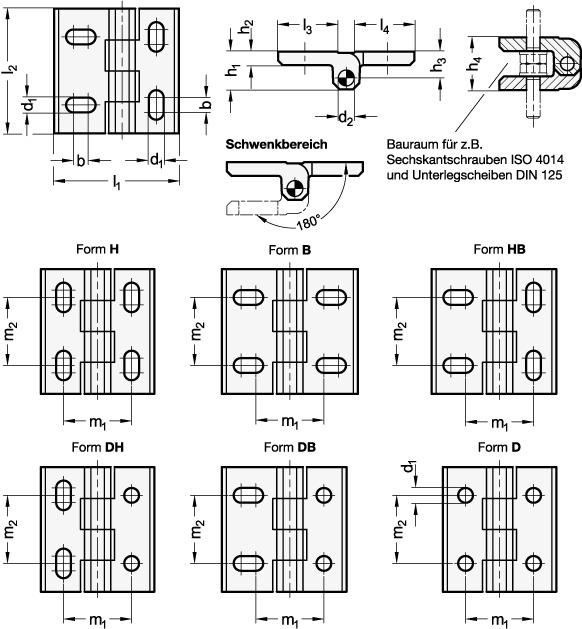

Stainless steel hinges GN 235 are adjustable in height or width along the slots, depending on the design, and are fastened with hex-head, oval-head or cylinder screws with a low head. Thanks to sufficient space (installation space) available for screw heads and washers, the hinges can be opened by 180° without collision. The hinge drill pattern corresponds with that of the GN 237 hinge family, which allows the hinges to be exchangeable.
Attributes
Form
H - height adjustable
Height l1 ( Form D, DH, H)
40
Material
NI - Stainless steel
RoHS
Ja
Surface
GS - matt blasted
Weight
0.079 kg
Width l2
45
b
5.3
d1
5.3
d2
4
h1
13
h2
5
h3
9.5
h4
19
l3 D, DH, H
16
l4 D, DH, H, DB, HB
16
m1
25
m2
25
