Hinge
GN 237.1-76-50-A 2x2 countersunk screw holesPA-HP - Polyamide PA-HP
Item-no.: 1344449Supplier number: 237.1-76-50-AEAN: 4045525382497
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 4 variants:
Price and stock visible after login
Description
Hinges GN 237.1 with horizontally elongated hinge wings are made in a compact and sturdy design. They are used when larger spacings are required for the fastening holes.

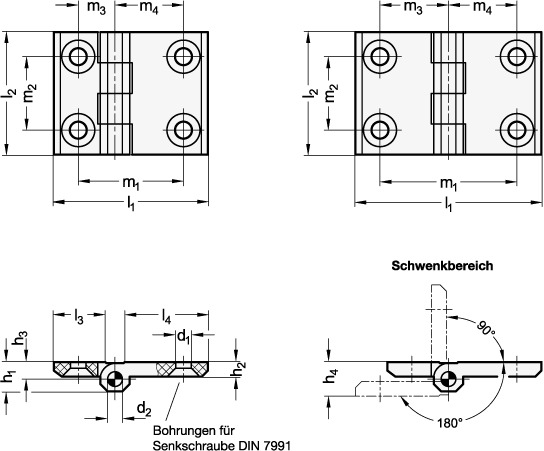

Attributes
Form
A - 2x2 holes for countersunk screws
Hinge leaf
l3 = l4 - extended on both sides
Length l1
76
Material
PA-HP - Polyamide PA-HP
RoHS
Ja
Weight
0.042 kg
Width l2
50
d1
6.5
d2
6
h1
11.5
h2
6
h3
6.5
h4
13
h4 ≈
13
l3
31
l4
31
m1
56
m2
30
m3
28
m4
28
