Hinge
GN 237-ZD-63-50-A-SW black KU-coatedZD - Zinc die casting
Item-no.: 1169818Supplier number: 237-ZD-63-50-A-SWEAN: 4045525876453
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 20 variants:
Price and stock visible after login
Description

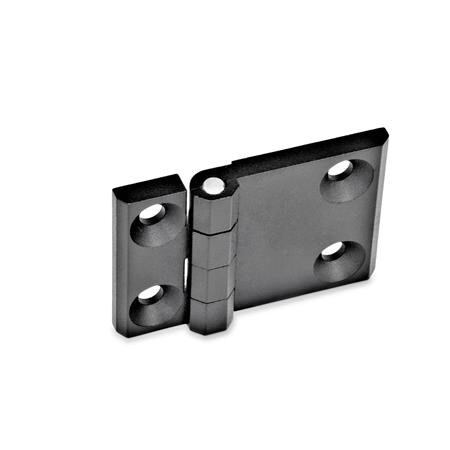

Hinges GN 237 with horizontally elongated hinge wings are made in a compact and sturdy design. They are used when larger spacings are required for the attachment bore holes.
Attributes
Form
A - 2x2 holes for countersunk screws
Hinge leaf
Extended on one side
Length l1
63
Material
ZD - Zinc die casting
RoHS
Ja
Surface
SW - black, RAL 9005, textured matt
Weight
0.104 kg
Width l2
50
d2
6.3
d3
6
h1
11.5
h2
6
h3
6.5
h4
13
l3
18.5
l4
31.5
m1
43
m2
30
m3
15
m4
28
