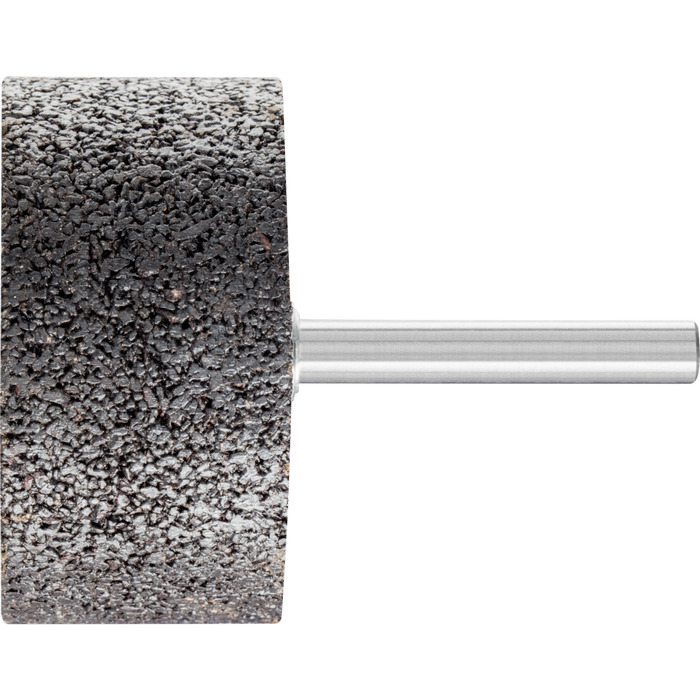

Mounted point hardness N
ZY 5025 6 AN 24 N5B Inox EDGE PferdItem-no.: 1027265Supplier number: 31332612EAN: 4007220100387
PU (PU NW): 5 PiecePU (Packaging): 5 PieceQuantity:
5 PiecePackable
Item available in 27 variants:
Price and stock visible after login
Description
The INOX EDGE design is particularly well-suited to edge grinding on stainless steel (INOX). Its applications include weld dressing on fillet welds on stainless steel components, removing burrs on moulded parts made of high-temperature-resistant alloys, removing burrs on stainless steel castings and grinding chamfers in preparation for welding stainless steel profiles. The cylindrical shape ZY is ideal for grinding bores, radii and contours.
Attributes
Binding
AN
Form
W 242
Grit size
24
Grit size
24
Height
25 mm
Length, shaft
40 mm
Material
Aluminium oxide
Material suitability INOX
Very well suited
Material suitability casting
Conditionally suitable
Material suitability steel
Conditionally suitable
Max. RPM
19000 RPM
Max. speed
19000 min-¹
RPM, opt.
19000 RPM
Series
byly_ZY_AN_INOX_31
Shaft-Ø
6 mm
Width metric
25 mm
Ø
50 mm
Ø External metric
50 mm
Ø Shaft metric
6 mm
