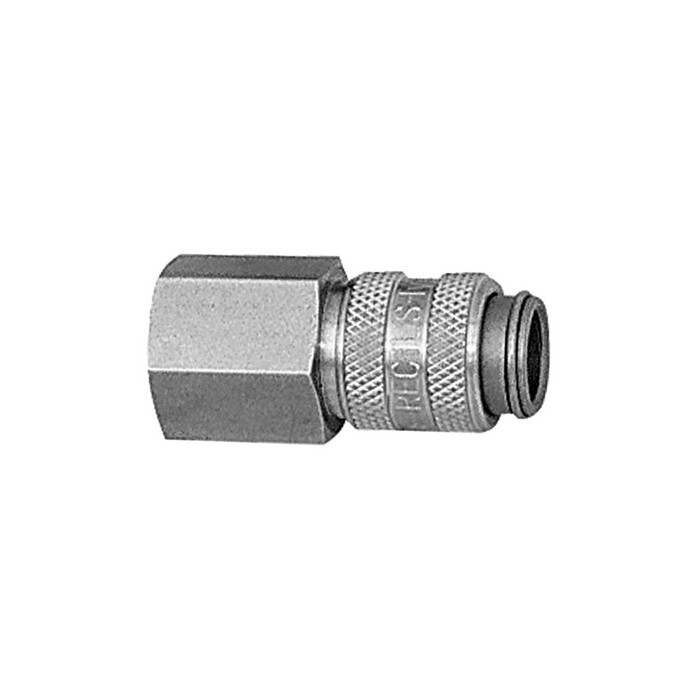

Quick-release coupling
NW5 IG 1/8", L 36 mm stainless steelItem-no.: 1242691Supplier number: 243.430customs tariff number: 84812090EAN: 4047322059633
Quantity:
1 PiecePackable
Item available in 3 variants:
Price and stock visible after login
Description
Quick-connect coupling I.D. 5, Stainless steel 1.4305, G 1/8 IT, Operating pressure 0 - 35 bar, Temp. -15 °C to 200 °C. One-hand quick disconnect couplings, one side sealing, made of stainless steel 1.4305, compact with a large bore. To prevent injuries or a "whiplash" effect, we recommend that the plug-in nipple is held with one hand during uncoupling. Areas of application: Pneumatic system, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology, offshore.
Attributes
Ambient temperature max.
200 °C
Ambient temperature min.
-15 °C
Ball
Stainless steel
Betriebsdruck max.
35 bar
Betriebsdruck min.
0 bar
Connection
G 1/8 IG
Durchfluss (Luft)
560 l/min
Durchflusswertmessung
bei 6 bar und Δ<sub>p </sub>= 0,5 bar
Flow rate
560 l/min (air)
Housing
Stainless steel 1.4305
Length (battery)
36,0 mm
Medium temperature max.
200 °C
Medium temperature min.
-15 °C
NW
5
Operating pressure
0 - 35 bar, max. static operating pressure (without pulsation)
Riegler article number
107195
SW
14 mm
Sealing material
FKM
Sleeve
Stainless steel 1.4305
Spray ring
Stainless steel
Spring
Stainless steel
Valve body
Stainless steel 1.4305
