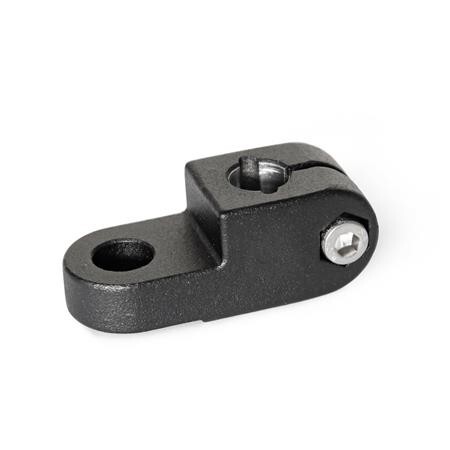

Sensor holder
GN 273.4-B12-B12-2-SWAL - Aluminium
Item-no.: 1191832Supplier number: 273.4-B12-B12-2-SWEAN: 4045525655515
Quantity:
1 PiecePackable
Item available in 10 variants:
Price and stock visible after login
Description
The clamping bore of sensor holders GN 273.4 is mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462 . At the screw location z, the socket cap screw reduces the bore cross-section for clamping. For clamping without tools, the socket cap screw can be replaced by an adjustable hand lever GN 911 listed in the table as accessory.
Attributes
Borehole d1
B 12
Borehole d2
B 12
Code number
2 - with stainless steel socket head cap screw ISO 4762
L1
64
Material
AL - Aluminium
Recommended accessories clamping lever GN 911 for zl2
45 | 63
Recommended accessories clamping lever GN 911 for zx1
45
RoHS
Ja
Surface
SW - black, RAL 9005, textured matt
Weight
0.060 kg
b Laschenbreite
25
d3
27
k
25
m
29.5
t
11
x2
63
z Bolting point
M6-20
