Sensor holder
GN 271.4-B12-25-SWAL - Aluminium
Item-no.: 1191805Supplier number: 271.4-B12-25-SWEAN: 4045525655461
Quantity:
1 PiecePackable
Item available in 2 variants:
Price and stock visible after login
Description

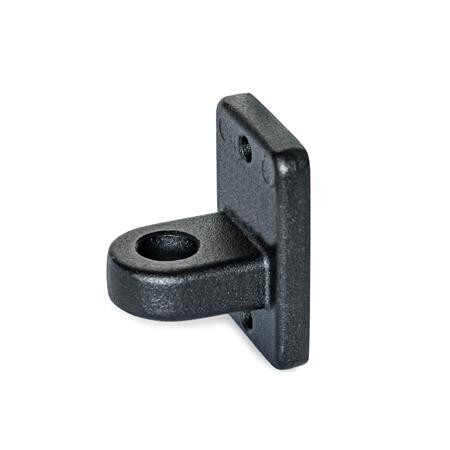

Sensor holders GN 271.4 accept sensors with external thread via the hole in the lug. They can also be universally attached via the flange to profile systems.
Attributes
Borehole d1
B 12
Length l
36.5
Material
AL - Aluminium
RoHS
Ja
Surface
SW - black, RAL 9005, textured matt
Tab width b
25
Weight
0.039 kg
d2
30
d3
5.5
m1
24
m2
25
t1
11.5
t2
7
x1
50
x2
38
y
35
