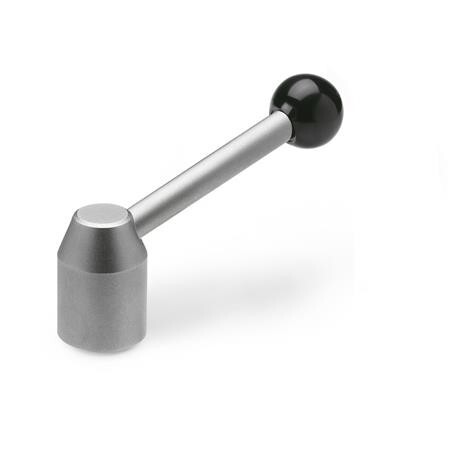

Clamping lever
GN 212-32-M16-E-NI angled, stainless steelNI - Stainless steel
Item-no.: 1190999Supplier number: 212-32-M16-E-NIcustoms tariff number: 73181900EAN: 4045525088238
Quantity:
1 PiecePackable
Item available in 27 variants:
Price and stock visible after login
Description
Stainless steel tension levers GN 212 are used as clamping element as well as operating levers.
Attributes
Connection thread d2
M 16
Diameter d
32
Form
E - Lever angled with thread
L1
133
L2
126
Material
NI - Stainless steel
RoHS
Ja
Weight
0.358 kg
d4
12
d5
32
h1
52
h2
98
h2 ≈
98
l1 ≈
133
l2 ≈
126
t1 min.
25
t1min.
25
