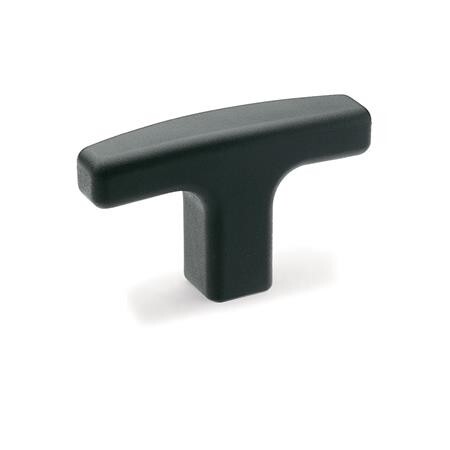

T-handle
GN 563-40-M5PA - plastic, polyamide
Item-no.: 1351016Supplier number: 563-40-M5customs tariff number: 39263000EAN: 4045525381667
Quantity:
1 PiecePackable
Item available in 19 variants:
Price and stock visible after login
Description
T-handles GN 563 can be used on operating handles as well as on clamping fixtures. These handles lend themselves ideally for very high manual clamping forces.

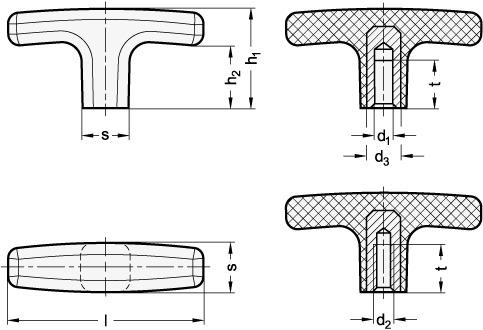

Attributes
Handle length l
40
Handle length l11
41
Material
PA - plastic, polyamide
RoHS
Ja
Screw thread d2
M 5
Weight
0.016 kg
h1
28
h2
18.5
s Square
13
