T-handle with internal thread
GN 563.2-55-B6-SW Aluminium black RAL 9005AL - Aluminium
Item-no.: 1205992Supplier number: 563.2-55-B6-SWEAN: 4045525454309
Quantity:
1 PiecePackable
Item available in 24 variants:
Price and stock visible after login
Description
T-handles GN 563.2 can be used as either operating handles or for clamping purposes, producing high clamping forces. T-handle screws are forged in a die and therefore have a structure with a higher stability and a smooth surface. Original ELESA design, produced in metal in agreement with ELESA S.p.a.

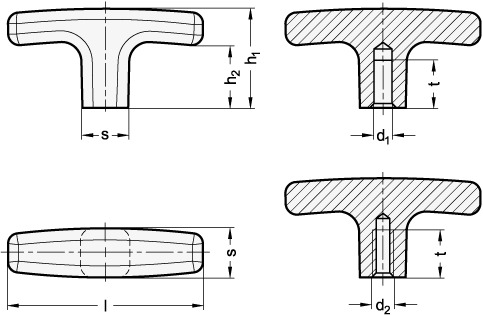

Attributes
Borehole diameter d1
B 6
Handle length l
55
Material
AL - Aluminium
RoHS
Ja
Surface
SW - black, RAL 9005, textured matt
Weight
0.030 kg
h1
33
h2
22
s Square
14
tmin.
12
