Lock for snap-in mounting
GN 115.5-VDE-22-SW-2 Elesa 421263KT - Plastic
Item-no.: 1217856Supplier number: 115.5-VDE-22-SW-2EAN: 4045525920378
Quantity:
1 PiecePackable
Item available in 40 variants:
Price and stock visible after login
Description

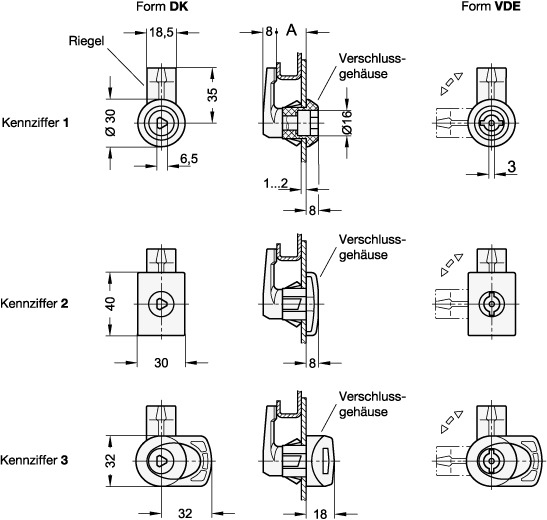

Latches GN 115.5 lock by a turning operation limited to 90° which moves the latch arm in the locked position behind the door frame. The bevels of the latch arm ease the closing of the door. Various latch arms are available to cover a latch arm distance A from 18 to 30 mm. Key for triangular spindle and key with double bit made of plastic are included parts of the order.
Attributes
Bar spacing Bar spacing A
22
Code number
2 - Locking housing with rectangular stop
Form
VDE - with double bit
Material
KT - Plastic
RoHS
Ja
Surface
SW - black, RAL 9005, textured matt
Weight
0.032 kg
