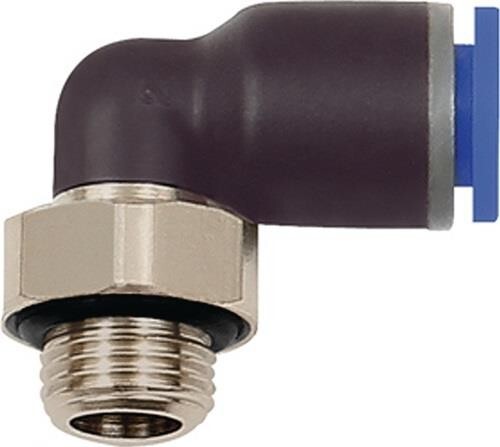

Elbow screw-in fitting
AG 1/2", SD10, swivelling, O-ring Blue series, KU- nickel-plated brassItem-no.: 1114398Supplier number: 125.012-10EAN: 4047322023146
PU (PU NW): 10 PiecePU (Packaging): 10 PieceQuantity:
1 PiecePackable
Price and stock visible after login
Description
Push-in L-fitting »Blue Series«, rotating, G 1/2 o., for hose exterior Ø 10 mm, pmax short term 15 bar. Push-in fittings series manufactured in plastic and nickel-plated brass. All parts are suitable for use with hoses, tubes or pipes made of plastic.
Attributes
Arbeitsdruck max. kurzzeitig
15 bar
Arbeitsdruck min.
-0,95 bar
Dichtmaterial
NBR
External thread
G 1/2 ″
External thread mm
20,95 mm
Gewinde
G 1/2
L1
26,9 mm
L2
25,7 mm
Lösering
Kunststoff
Material
Plastic or nickel-plated brass
Medium
Druckluft
Recommended hose
PU or PA (nylon)
SW
24 mm
Serie
Blaue Serie
Temperaturbereich max.
80 °C
Temperaturbereich min.
-20 °C
Temperature range
-20 to +80 °C
Thread type
cylindrical
Version
with O-ring, rotatable
Working pressure max.
15 bar
für Schlauch-Außen-Ø
10 mm
