Artikel in 2 varianten beschikbaar:
Prijs en voorraad zichtbaar na login
Beschrijving

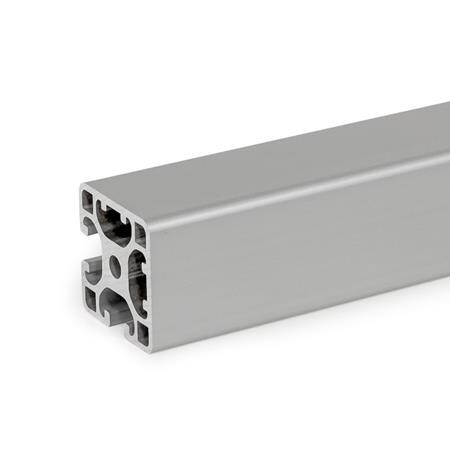

Aluminum profiles GN 11i with partially closed slots are produced by extrusion molding. They can be used, for example, to easily construct protective enclosures, workplace equipment or partition walls, when an attractive appearance is required. Aluminum profiles in combination with the removable and reusable accessories form a flexible modular system. Attachments can be fastened to either the slots or the end faces via the holes. The closed profile sides facilitate cleaning. The profile type light is typically used for small loads or for weight-optimized constructions. Aluminum profiles are supplied in bundles. The table shows the quantity included in each bundle.
Specificaties
Gebinde (Stück)
4
Gewicht
14.640 kg
Groefbreedte n
8
Lengte l
2
Materiaal
AL - Aluminium
Oppervlakte
N - geanodiseerd, natuurlijke kleur
Profilbreite s1
40
Profilhöhe s2
40
Profiltyp
N - light, 2 sides closed, offset by 90
Rastermaß
40
RoHS
Ja
d
6.8
s3
4.5
t
12.25
