Beschrijving

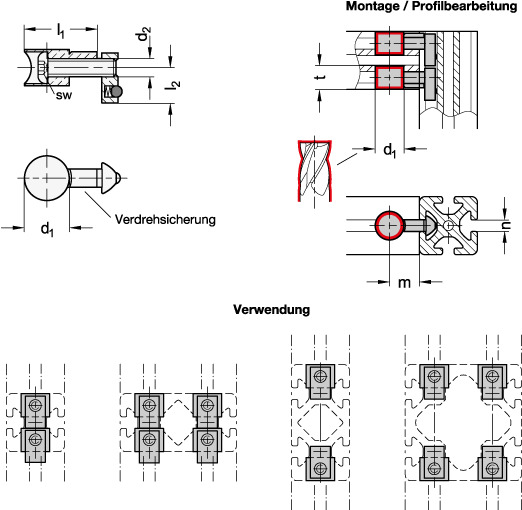

Universal connectors GN 22i fasten aluminum profiles together at right angles and, when used in pairs, secure them against twisting. Only one profile has to be machined. The connection can be freely positioned and slid along the slot. The anti-twist protection can be easily removed thanks to its predetermined breaking point, allowing installation at any angle relative to the profile slot. If panels are used in the slot, they must be suitably pocketed. Universal connectors are supplied in bundles. The table shows the quantity included in each bundle.
Specificaties
Aandraaimoment
8 Nm
Gewicht
0.072 kg
Groefbreedte n
6
Kleurcode
C - met schroef en schuifblok
L1
25.5
L2
11.5
RoHS
Ja
SW
4
Tightening torque in Nm
8
Vorm
V - met anti-rotatievergrendeling
d1
16
d2
M 6
m
15
t
12.7
