Standaard stekker
GN 20I-6-D-C-SZ-4Art.-Nr.: 1660298Leveranciersnummer: 20I-6-D-C-SZ-4EAN: 4045525896352
Aantal:
1 stukPakketgeschikt
Artikel in 2 varianten beschikbaar:
Prijs en voorraad zichtbaar na login
Beschrijving

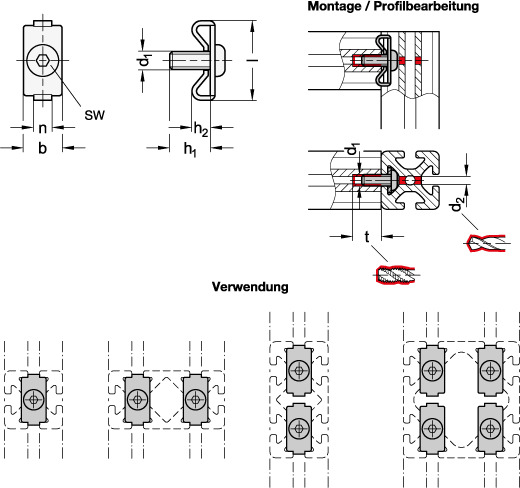

Standard connectors GN 20i fasten aluminum profiles at right angles and secure them against twisting. This requires machining of both profiles. The internal thread can be cut directly into the end face profile holes. If panels are used in the slot, they must be suitably pocketed. Standard connectors are supplied in bundles. The table shows the quantity included in each bundle.
Specificaties
Aandraaimoment
10 Nm
Gebinde (Stück)
4
Gewicht
0.036 kg
Groefbreedte n
6
Kleurcode
C - met schroef
Lengte l
28.5
Length l ≈ Length l
28.5
RoHS
Ja
SW
4
Tightening torque in Nm
10
Vorm
D - dubbel
Werkstoff / Oberfläche
SZ - Steel, galvanised, blue passivated
b
13
d1
M 6
d2
5.5
d2 ≈
5.5
h1
12
h1 ≈
12
h2
7.5
h2 ≈
7.5
t
15
