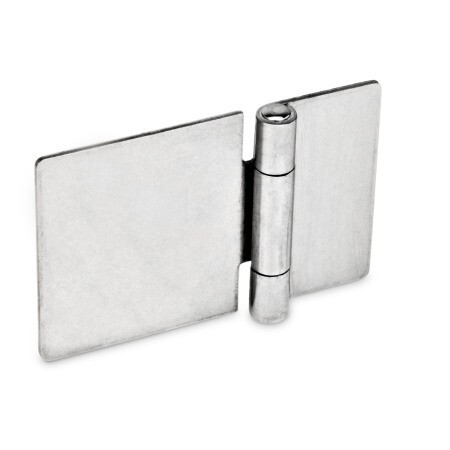

Sheet metal hinge
GN 136-NI-45-30-A stainless steelNI - blank
Item-no.: 1343621Supplier number: 136-NI-45-30-AEAN: 4045525410534
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 90 variants:
Price and stock visible after login
Description
Stainless steel sheet metal hinges GN 136 are available in many different versions and are suitable for light to medium-duty applications. Type A can be fixed in place by welding or by using holes made by the customer.
Attributes
Form
A - without holes
Image variants
l1 (e) - extended on one side
Length l2
30
RoHS
Ja
Width l1
45
d1
3
l1 extended on one side
45
m1
33
m1einseitigverlängert
33
m2
18
m4
9
m5
24
s
1.5
