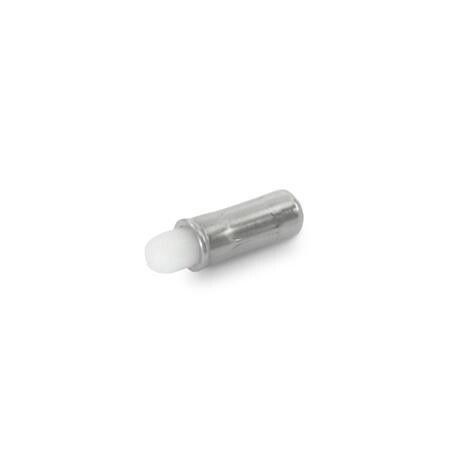

Druckstück, federnd, zum Einpressen
GN 614.4-4-KU Bolzen KunststoffItem-no.: 1208306Supplier number: 614.4-4-KUcustoms tariff number: 73182900EAN: 4045525862920
PU (Packaging): 25 PieceQuantity:
1 PiecePackable
Item available in 10 variants:
Price and stock visible after login
Description
Spring plungers GN 614.4 are used for locking, as pressing and back-off pins, but also as impact dampers. A tolerance of H7 for the location hole of d1 is recommended.
Attributes
End
8.2
Federdruck Anfang
3 N
L1
10.7
L2
0.9
Material (bolt)
KU - plastic, polyacetal (POM)
Outer diameter d1
4
RoHS
Ja
Spring pressure in N ≈start
3
Weight
0.001 kg
d2
2.8
d3
4.6
d4
4
l2 ≈
0.9
l3
1.8
l3 ≈
1.8
l4
5.6
l4 ≈
5.6
w Spring travel
2.7
