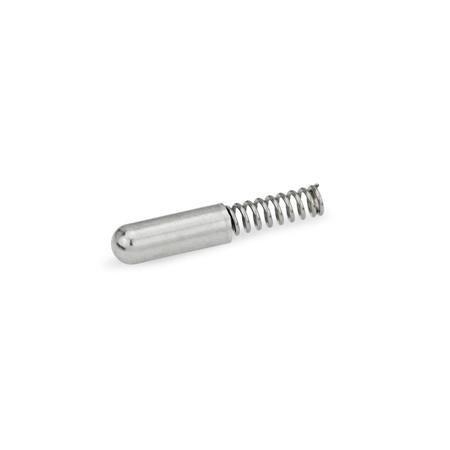

Spring sleeve with hemisphere

Spring loaded shells GN 610 are used for indexing and locking. A special feature is their large spring travel with a compact size. A simple hole is sufficient for installation. Pre-tensioning and securing of the spring loaded shells must be ensured by the opposing stop piece. Type HBN has a collar to prevent the spring-loaded shell from springing out the front. A simple stepped hole is sufficient for installation. The part is secured from the back side, such as with a plate or a threaded stud.
