Spring cotter pin
GN 1024-ST-2-EST - Steel
Item-no.: 1343256Supplier number: 1024-ST-2-Ecustoms tariff number: 73209090EAN: 4045525063921
Quantity:
1 PiecePackable
Item available in 23 variants:
Price and stock visible after login
Description
Spring cotter pins GN 1024 are used for the axial fixing of bolts and axes and as distortion guard, e.g. for crown nuts DIN 935. Owing to their double winding, spring cotter pins of type D have a flatter spring characteristic and are therefore easier to install. Also, a retaining rope including a key ring can be attached to the double winding to safeguard the Spring cotter pin against loss.

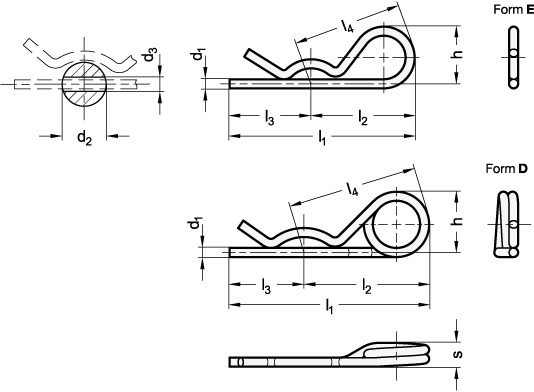

Attributes
Dismantling
9
For bolt Ø
12
Forces in N ≈mounting
14
Form
E - with single winding
Kräfte in N Montage
14
L1
57
L2
32
Material
ST - Steel
Outer diameter d2
9 ... 14
RoHS
Ja
Weight
0.002 kg
d1
2
d3 Recomm. mounting Ø
2.5
d3 empf. Aufnahme-Ø
2.5
h
13
l3
25
l4
34
