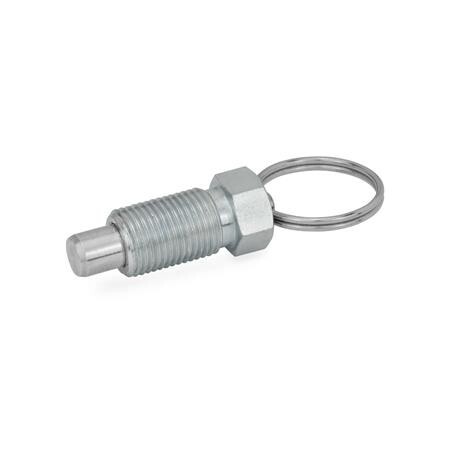

Indexing plunger with pull ring

Indexing plungers GN 717 are characterized by small dimensions. These indexing plungers are universally applicable due to their prevention of misalignments and positioning errors of the mating indexing bores. Type A with pulling ring can be activated by finger in inaccessible places. If the indexing plungers are to be installed in areas which are not accessible by hand, type D with a pulling loop can be used for actuation from a distance. For example, this is possible with a retaining cable GN 111.2. During assembly, the max. tightening torques shown in the table should not be exceeded when securing the lock nut.
