1222847 #1
Ganter

Levelling foot with external hexagon

GN 41-60-M12-60-D3-SK Stainless steel, rubber pad NBR
NI - Stainless steel
Item-no.: 1222847Supplier number: 41-60-M12-60-D3-SKcustoms tariff number: 73269098EAN: 4045526005685
Quantity: ​​ 1 PiecePackable​
Your price: Price on request
Item available in 1135 variants:
Short-term Sourcing
Description
Leveling feet GN 41 are for use in aggressive environments. The range of combinations of base plates and adjustable spindle versions allows these leveling feet to be used in every situation. The base plate with the rubber underlay protects sensitive surfaces and reduces lateral slippage. The type B0 can also be fastened to the mounting surface through two holes. The leveling feet are supplied fully assembled and are not removable.
Attributes
Foot diameter d1
60
Form (foot plate)
D3 - with rubber overlay, vulcanised, black
Length l1 (S/SK)
60
Material
NI - Stainless steel
RoHS
Ja
Screw thread d2
M 12
Spindle variant
SK - with nut, external hexagon at the bottom
Static load capacity in kN Version S/SK
16
Statische Belastbarkeit Ausführung S / SK
16 kN
Weight
0.144 kg

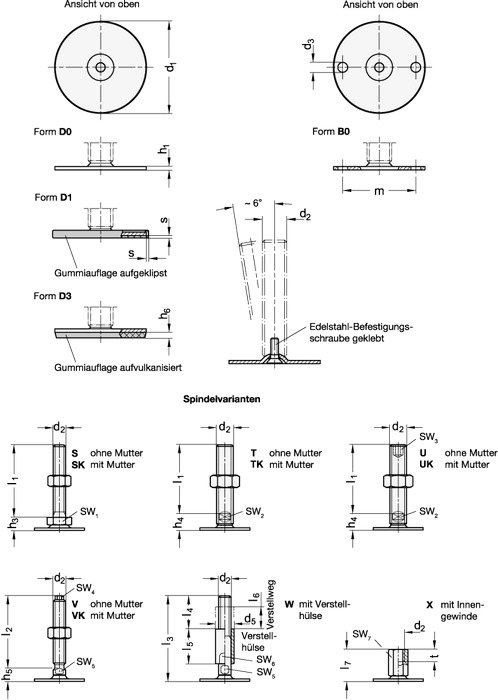

d1
60
d2
M 12
h1
2.5
h3
11
h6
4.5
m
48
sw1
17
