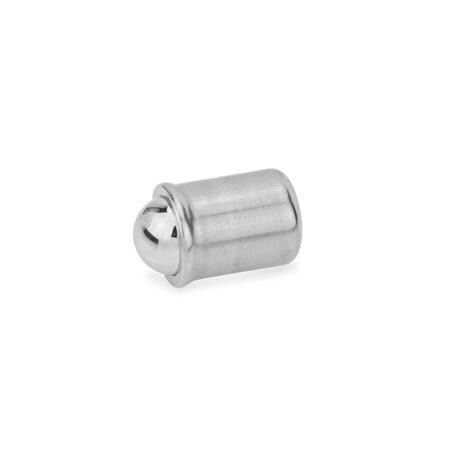

Spring-loaded press-fit thrust piece
GN 614-3-NI Sleeve ball stainless steelNI - Stainless steel
Item-no.: 1208321Supplier number: 614-3-NIcustoms tariff number: 73182900EAN: 4045525559585
PU (Packaging): 50 PieceQuantity:
1 PiecePackable
Item available in 19 variants:
Price and stock visible after login
Description
Stainless steel spring plungers GN 614 are used as detents as well as for push-on and push-off applications and ejectors. A tolerance of H7 for the location hole of d1 is recommended.
Attributes
Diameter d
3
End
3.5
Federdruck in N ≈normal (Form (NI)Anfang
1.8
Federdruck normal (Form (NI)Anfang
1.8 N
Form
NI - Stainless steel, normal spring pressure
L1
4
L2
0.6
Material
NI - Stainless steel
RoHS
Ja
Weight
0.001 kg
d2
2.4
d3
3.5
l1 ≈
4
l2 ≈
0.6
w Spring travel
0.7
