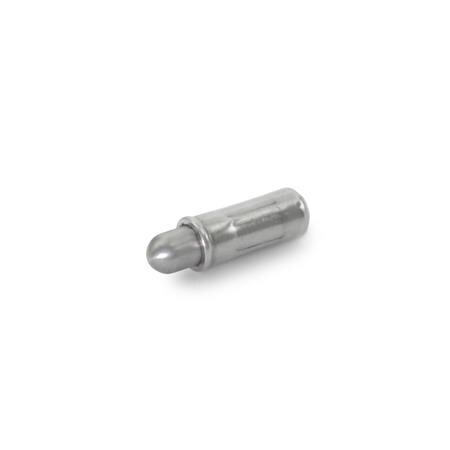

Druckstück, federnd, zum Einpressen
GN 614.4-5-NI Bolzen EdelstahlItem-no.: 1208309Supplier number: 614.4-5-NIEAN: 4045525862883
PU (Packaging): 25 PieceQuantity:
1 PiecePackable
Item available in 10 variants:
Price and stock visible after login
Description
Spring plungers GN 614.4 are used for locking, as pressing and back-off pins, but also as impact dampers. A tolerance of H7 for the location hole of d1 is recommended.
Attributes
End
9
L1
12
L2
0.9
Material (bolt)
NI - Stainless steel
Outer diameter d1
5
RoHS
Ja
Weight
0.001 kg
d2
3.8
d3
5.6
d4
5
l3
2.1
l4
6
w Spring travel
4
